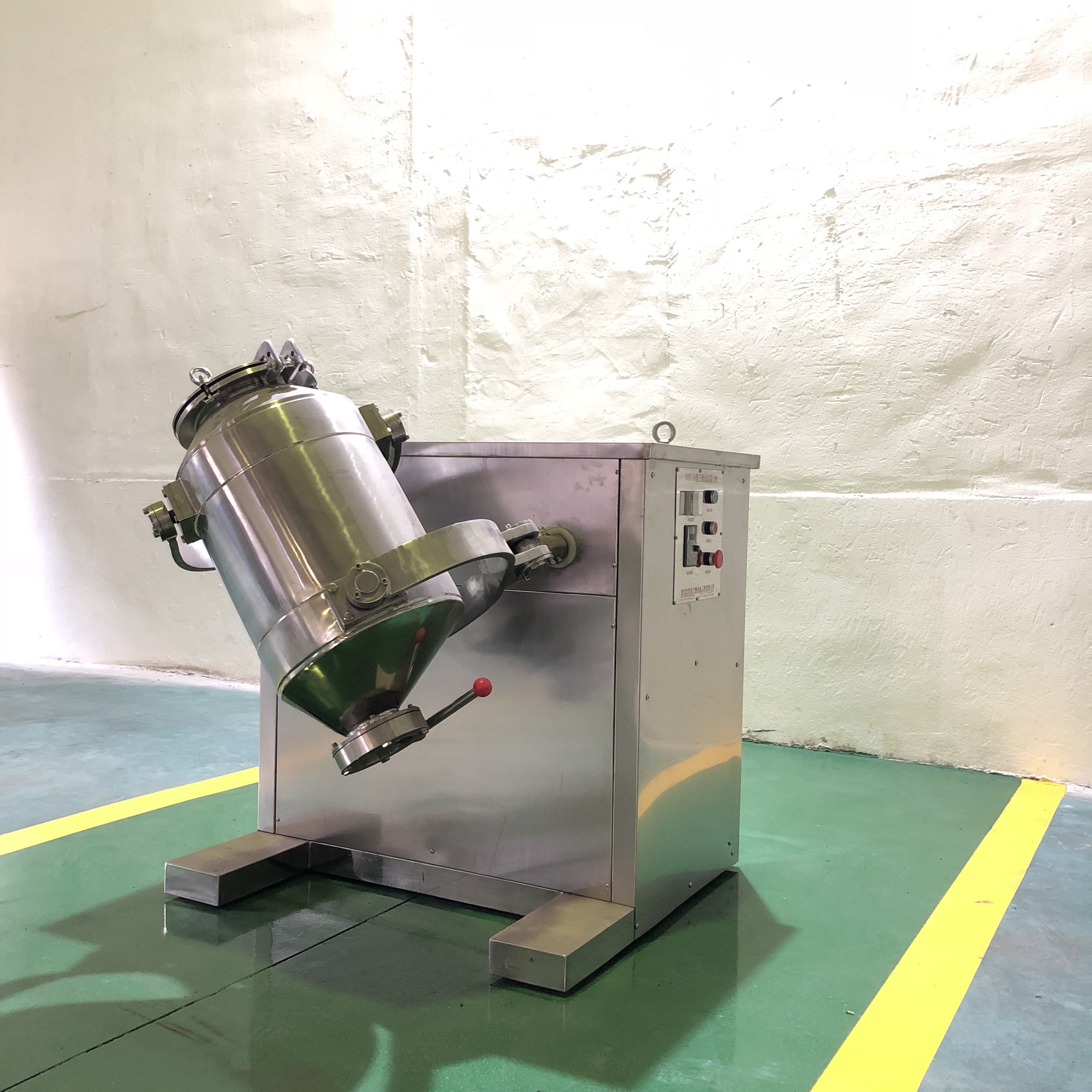

SYH-500 High Efficiency SYH Series Three Dimensional Stirrer Swing
Powder Mixing Machine For Medicine
Double spiral conical mixer is widely used in the mixing of powders
and powders (solid-solid) of chemical, ceramic powder, pesticide,
dye, food, color, glaze, feed, building materials and rare earth.
Such chemical machinery has wide adaptability to the mixture
material, does not cause overheating on the heat sensitive
material, does not pressurize and grind the granular material, and
does not cause chip separation phenomenon when the material with
different specific gravity and particle size is mixed.
Features
1). Uniformity: 99.9%
2). The effective loading rate of the container: 80%
3). The machine height is short
4). Partition wall installation can be realized
5). Stepless speed regulation can be achieved
6). Long life and low noise
7). High mixing efficiency
8). Vacuum feeding and lifting machine feeding are available.
Principle:
When it works, the mixer is provided with three-dimensional
movement, and carries out revolution and rotation. The mixer has
powerful turbulent action to accelerate material flowing and
dispersing and makes turning and translational movement to conquer
the impact of centrifugal force, so that gravity segregation and
agglomeration will not occur in the materials, there is no dead
corner, and even mixing is ensured.
This machine is suitable for many industries such as pharmaceutical
industry,chemical industry, metallurgy industry, foodstuff
industry, architecture industryand institutes, It can mix powder
and granule raw materials having good fluidityand make the mixed
raw materials reach the best mixing state.
This machine is suitable for many industries such as pharmaceutical
industry,chemical industry, metallurgy industry, foodstuff
industry, architecture industryand institutes, It can mix powder
and granule raw materials having good fluidityand make the mixed
raw materials reach the best mixing state.
Technical characters:
1. Because the mixing drum has multi directional motion, it makes
raw materialinside the drum has many cross-mixing points, therefore
the mixing effect is good.Its degree of uniformity may be over
99.9%. Its Max loading efficiency may be 0.9(The loading efficiency
of ordinary mixer is 0.4~ 0.6). Its mixing time is short andits
efficiency is high.
2. The design of mixing drum is unique. Its inner wall is polished
finely. Itsadvantages are no dead corner, no pollution to raw
material, convenient indischarge, easy in clean and so on.
Main Technical Parameter:
| Type | SYH-5 | SYH-100 | SYH-200 | SYH-400 | SYH-600 | SYH-800 | SYH-1000 | SYH-1500 |
| | 100 | 200 | 400 | 600 | 800 | 1000 | 1500 |
| Max loading volume (L) | 4 | 60 | 120 | 240 | 360 | 480 | 600 | 900 |
| Max loading weight (kg) | 5 | 40 | 80 | 160 | 240 | 320 | 400 | 600 |
| Spindle rotatio n speed (r/min) | 24 | 15 | 12 | 10 | 10 | 10 | 10 | 10 |
| Motor power (kw) | 0.37 | 1.5 | 3 | 4 | 5.5 | 7.5 | 11 | 15 |
| Overall dimensions (mm) | L | 600 | 1200 | 1300 | 1500 | 1800 | 1900 | 1950 | 2600 |
| W | 1000 | 1800 | 1600 | 2200 | 2400 | 2500 | 2500 | 2500 |
| H | 1000 | 1500 | 1500 | 1500 | 1650 | 2100 | 2350 | 2400 |
| Weight (kg) | 150 | 500 | 750 | 1200 | 1500 | 1650 | 1800 | 2500 |
Structure:
The three-dimensional motion mixer is composed of the machine base,
transmission system, electrical control system, multi-direction
motion I mechanism, mixing barrel and other parts. The mixing
barrel in direct contact with the material is made of stainless
steel.The inside and outside walls of the barrel are polished.
