Two Dimensional Motion Industrial Motive Blender EYH 2 D Drum Food
Mixer
Features

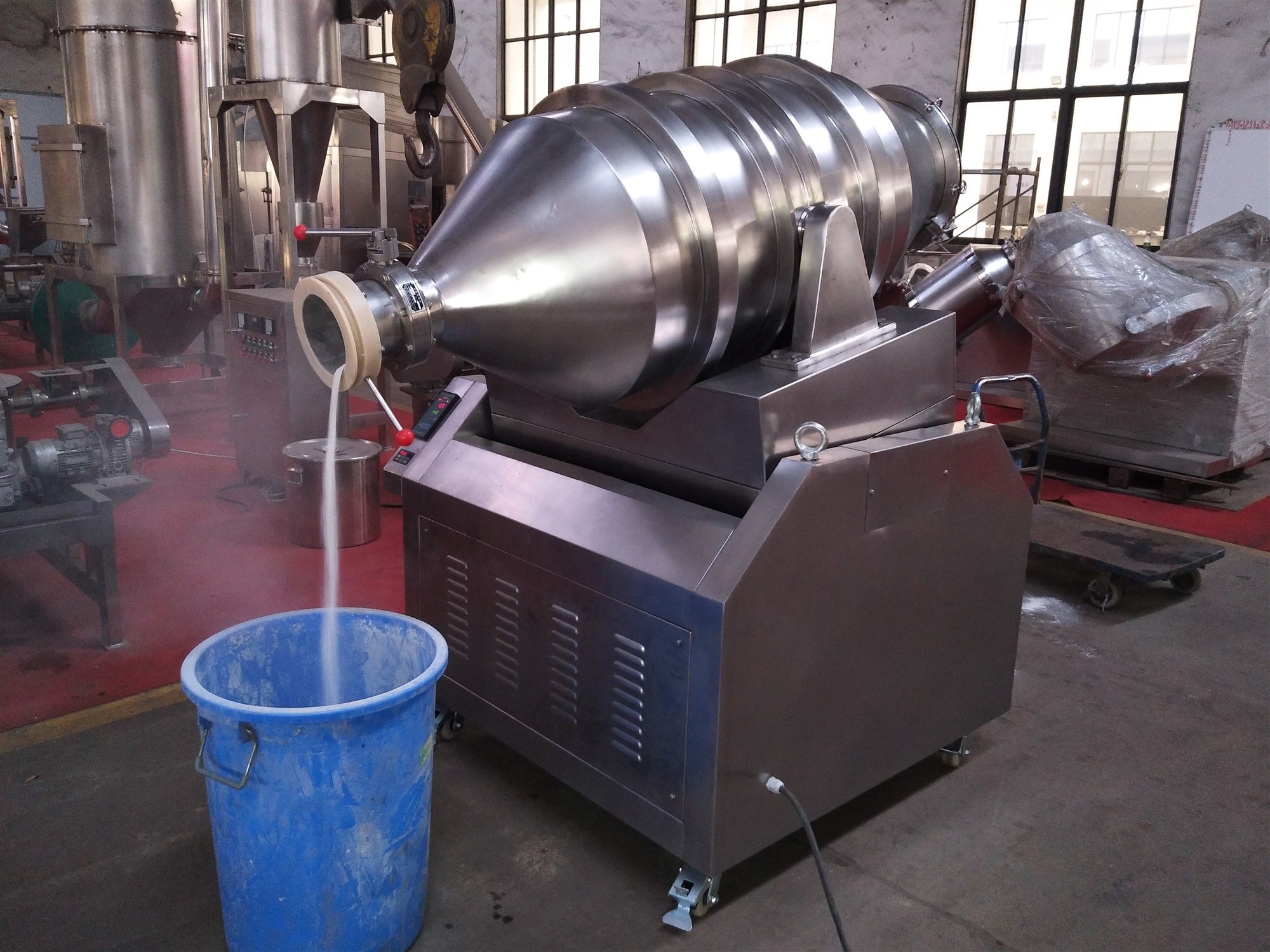

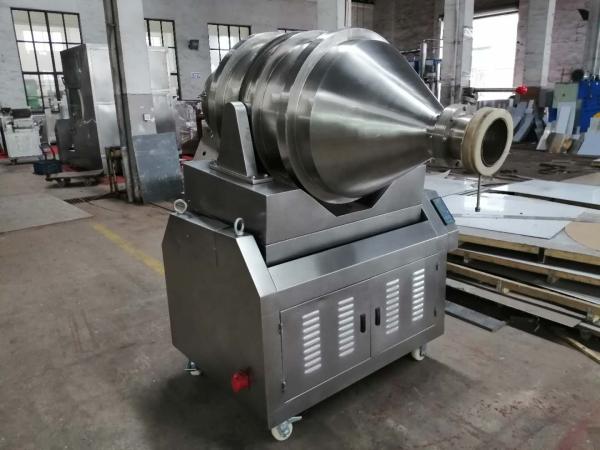

The drum of the two-dimensional mixer can perform two movements at
the same time, one for the rotation of the drum and the other for
the swing of the drum with the swing frame.
The mixture is rotated, inverted, and mixed with the drum in the
drum, and the mixing motion of the left and right back and forth
occurs with the swing of the drum.
Under the joint action of the two movements, the material is
obtained in a short time.
Two-dimensional mixer is suitable for mixing a variety of powder
and granular materials.
Application:
This machine is suitable for many industries such as pharmaceutical
industry,chemical industry, metallurgy industry, foodstuff
industry, architecture industryand institutes, It can mix powder
and granule raw materials having good fluidityand make the mixed
raw materials reach the best mixing state.
Main Technical Parameter:
| Spec | gross volume
(L) | feed rate | feed weight
(Kg) | Overall dimensions(mm) Epower(kw) |
| A | B | C | D | M | H | rotation | sway |
EYH100 | 100 | 50 | 40 | 860 | 900 | 200 | 400 | 1000 | 1500 | 1.1 | 0.75 |
| EYH300 | 300 | 150 | 75 | 1000 | 1100 | 200 | 580 | 1400 | 1650 | 1.1 | 0.75 |
| EYH600 | 600 | 300 | 150 | 1300 | 1250 | 240 | 720 | 1800 | 1850 | 1.5 | 1.1 |
| EYH800 | 800 | 400 | 200 | 1400 | 1350 | 240 | 810 | 1970 | 2100 | 1.5 | 1.1 |
| EYH1000 | 1000 | 500 | 350 | 1500 | 1390 | 240 | 850 | 2040 | 2180 | 2.2 | 1.5 |
| EYH1500 | 1500 | 750 | 550 | 1800 | 1550 | 240 | 980 | 2340 | 2280 | 3 | 1.5 |
| EYH2000 | 2000 | 1000 | 750 | 2000 | 1670 | 240 | 1100 | 2540 | 2440 | 3 | 2.2 |
| EYH2500 | 2500 | 1250 | 950 | 2200 | 1850 | 240 | 1160 | 2760 | 2600 | 4 | 2.2 |
| EYH3000 | 3000 | 1500 | 1100 | 2400 | 1910 | 280 | 1220 | 2960 | 2640 | 5 | 4 |
| EYH5000 | 5000 | 2500 | 1800 | 2700 | 2290 | 300 | 1440 | 3530 | 3000 | 7.5 | 5.5 |
| EYH10000 | 10000 | 5000 | 3000 | 3200 | 2700 | 360 | 1800 | 4240 | 4000 | 15 | 11 |
| EYH12000 | 12000 | 6000 | 4000 | 3400 | 2800 | 360 | 1910 | 4860 | 4200 | 15 | 11 |
| EYH15000 | 15000 | 7500 | 5000 | 3500 | 3000 | 360 | 2100 | 5000 | 4400 | 18.5 | 15 |
Main Features:
1. Feed inlet cover is equipped with vacuum feeding interface, can
be quickly connected with vacuum feeding , realizing automatic
feeding, to reduce labor intensity, increases efficiency and also
achieving dust - free operation, do not pollute the workshop
environment, in line with GMP standard
2. Mixing barrel is equipped with the material discharging board so
that the machine has large charging coefficient ,fast and uniform
mixing,convenient discharging...
3. The discharging device adopts vacuum butterfly valve,with easy
operation, the discharge volume can be controlled, no dust.
4. The main body of machine is made of high-quality stainless steel
,with precision polished, easy to clean smooth surface , in line
with GMP requirements.
