GMP Food Chemical Pharmaceutical Mixing Equipment Two Dimensional

Industrial Two Dimensional Motion Mixer Machine For Food Chemical

Main features

1. For mixing dry powders or small granules in Food,Chemical and Pharmaceutical industry ;
2. Particularly good at mixing materials with different bulk density and particle size range
3. Mixing vessel volume: 300-5000L;
4. GMP design
5. Vacuum conveyor can be equipped for automatic and dust-free feeding

Working principle

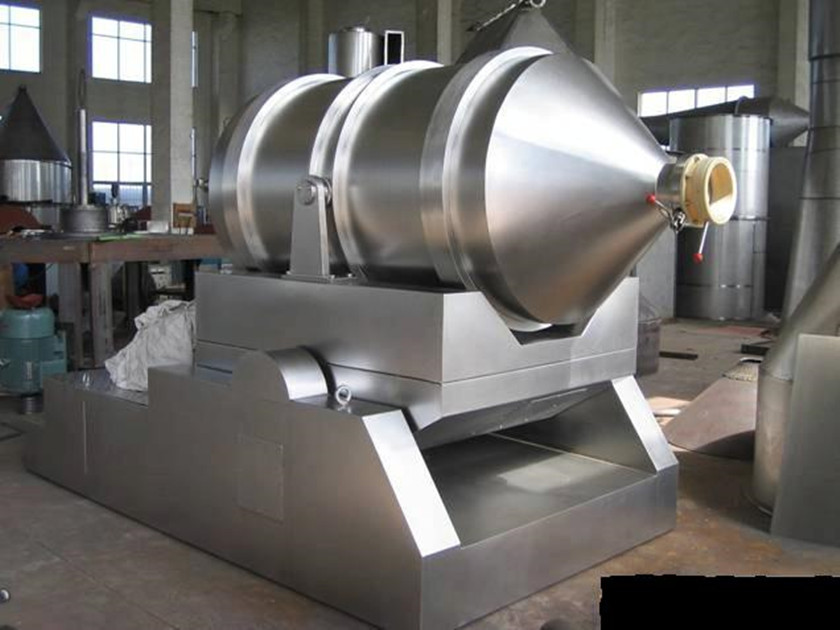

EYH series 2D rotary drum batch mixer machine is a novel material mixer extensively used in phamaceutical, chemical, metallurgical, food, light and agricultical industries. This mixer can carry out highly even mixing of powders or granules, so that the mixed materials can reach their best effectiveness. This 2D rotary drum batch mixer machine consists of mixing barrel, swing frame and support frame. The Double cone mixing barrel is mounted on support frame by four rollers which makes the mixing barrel rotate axially. Meanwhile, the crank arm pushes and pulls the mixing barrel back and forth. Axial rotation and rock back and forth happens in a solid two dimensional space. Materials are evenly mixed during rolling and rocking in a very short time.
Technical advantages

Technical advantages

1. Mirror polished of inner and outer shell to meet GMP standard.

2. No blind angle in the double-cone shell, no accumulation of materials, efficient and shor mixing time.

3. Mixing uniformity can reach 99%

4. Spiral paddles are welded inside the mixing chamber to enhance mixing

5. Fully integrated motors and controls

6. Can work with vacuum conveyor for automatic and dust-free feeding

7. Mixing chamber volume can be as big as 15000L due to horizontal design for large-scale production.

Main Technical Parameter:

Spec	gross volume (L)	feed rate	feed weight (Kg)	Overall dimensions(mm) Epower(kw)
Spec	gross volume (L)	feed rate	feed weight (Kg)	A	B	C	D	M	H	rotation	sway
EYH100	100	50	40	860	900	200	400	1000	1500	1.1	0.75
EYH300	300	150	75	1000	1100	200	580	1400	1650	1.1	0.75
EYH600	600	300	150	1300	1250	240	720	1800	1850	1.5	1.1
EYH800	800	400	200	1400	1350	240	810	1970	2100	1.5	1.1
EYH1000	1000	500	350	1500	1390	240	850	2040	2180	2.2	1.5
EYH1500	1500	750	550	1800	1550	240	980	2340	2280	3	1.5
EYH2000	2000	1000	750	2000	1670	240	1100	2540	2440	3	2.2
EYH2500	2500	1250	950	2200	1850	240	1160	2760	2600	4	2.2
EYH3000	3000	1500	1100	2400	1910	280	1220	2960	2640	5	4
EYH5000	5000	2500	1800	2700	2290	300	1440	3530	3000	7.5	5.5
EYH10000	10000	5000	3000	3200	2700	360	1800	4240	4000	15	11
EYH12000	12000	6000	4000	3400	2800	360	1910	4860	4200	15	11
EYH15000	15000	7500	5000	3500	3000	360	2100	5000	4400	18.5	15

Main Features:
1. Feed inlet cover is equipped with vacuum feeding interface, can be quickly connected with vacuum feeding , realizing automatic feeding, to reduce labor intensity, increases efficiency and also achieving dust - free operation, do not pollute the workshop environment, in line with GMP standard

2. Mixing barrel is equipped with the material discharging board so that the machine has large charging coefficient ,fast and uniform mixing,convenient discharging...

3. The discharging device adopts vacuum butterfly valve,with easy operation, the discharge volume can be controlled, no dust.

4. The main body of machine is made of high-quality stainless steel ,with precision polished, easy to clean smooth surface , in line with GMP requirements.
