15K 4200W Ultrasonic Welding Machine
15KHz / 20kHz digital type 15KHz / 20kHz digital type
Worktable: 2 kinds
An iron
A kind of aluminum profile (brown).(The price is the same. Customer's choice)
Machine Feature:
Ultrasonic welder has strong welding strength to weld different
plastic parts and meet waterproof and airtight requirement. It can
weld many kinds of plastic materials such as: ABS, PS, PP, PE, PC,
PVC, NYLON, NORYL, ACETAL, POLYSULFON etc.
1. High precision splitter installed, with Powerful ultrasonic
welding, wonderful welding effect assured.
2. High Q value oscillator installed, high quality, reliable
working status. Use different moulds; you can realize different
welding application.
3. Automatic overload protection system.
4. Adjustable horizontal level, easy control welding horn.
5. Have resonant frequency when the load, unload, without
adjustment for the frequency of welding horn.
6. high-power machine, which is applied for Large workpiece.
7. Adopting alloy steel to keep frequency strong and stable.
8. All design and parameter above are adjustable upon customer
special requirement .

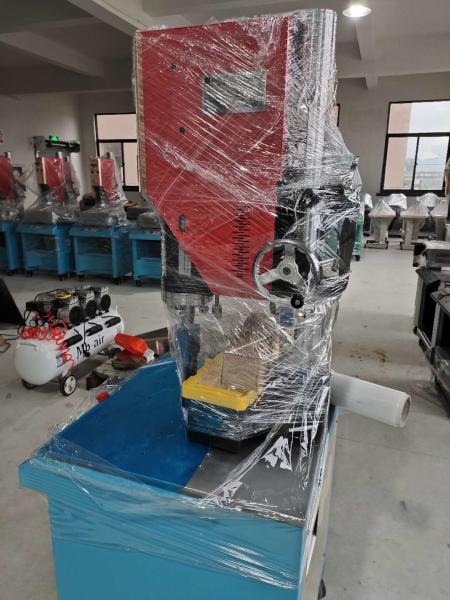

Equipment photos:
Technique Specification:
| Type | SAO2000 |
| Frequency | 20kHz/15kHZ |
| Power | 2600W |
| Input voltage | AC220V |
| Horn journey | 75mm |
| Machine journey | 275-455mm |
| Oscillation time | 0.01-9.995 |
| Air pressure | 1-7 bar |
| Welding capability | Φ220mm |
Operation Switch | Two-hand start and EMERGENCY BREAK button at front, external
switches are optional.
|
Size(mm) | Press | 760x650x2225 |
| Generator (Digital) | 412x320x118 |
| Generator (Standard type) | 557x414x152 |
Weight | Press | 180kg |
| Generator (Digital) | 34kg |
| Generator (Standard type) | 18kg
|
Mode
| Digital: Time mode/ Energy mode / Vibration drop function |
Standand: Time mode |
Equipment details:
Equipment advantages:
1,Two Height Adjustment Holder
Machine adopts with high precision independence rotary valve
cylinder, make the filling volume accuracy higher.
2,Strong Welding Height Adjuster
The machine can adjust the height to weld the products of different
height.
3,Strong Power Booster
Machine has many power model:
15K 1800W, 15K 2200W, 15K 2600W
20K 1500W, 20K 1800W, 20K 2000W
Different welding size work with different power and Khz.
4, 1-4 Power Level Adjuster
Machine has 1-4 Power Level to adjust, according to your work-piece
welding size and welding strength to adjust a suitable welding
power.
5,Safety Device - Emergency Stop
Once we meet any emergency situation, we can press this red button
and machine stop Immediately.
6,Safety Working Way - Two Start Buttons
There are two Start Buttons, worker need to press these two buttons
in same time to start to weld the work-piece, the possibility of
clamping is prevented.
