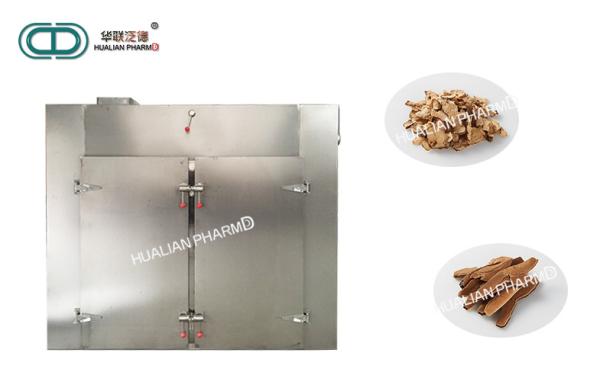

Electric Hot Air Circulation Oven Tray Dryer Medical Equipment Stainless Steel

Ct-c Hot Air Circulation Drying Oven​
Product introduction:
Ct-c series hot air circulating oven is equipped with low-noise high-temperature resistant axial flow fan and automatic temperature control system. The whole circulation system is completely closed, which improves the thermal efficiency of the oven from 3-7% in the traditional oven to 35-45% at present, and the high thermal efficiency can reach 50%. The successful design o ct-c type hot air circulating oven makes the hot air circulating oven in China reach the advanced level at home and abroad. Save a lot of energy for our country, improved the economic benefit of the enterprise. In 1990, the state administration of medicine issued the industry standard, unified model RXH.
Application​:
It is suitable for heating and curing, drying and dehydration of materials and products in pharmaceutical, chemical, food, agricultural and sideline products, aquatic producls, light industry, heavy industry and other industries. Such as raw material medicine, crude medicine, Chinese medicine decoction pieces, extract, powder, granule, granule, water pellet, packaging bottle, pigment dye, dehydrated vegetable, melon and fruit is dry, sausage, plastic resin, electrical components, baking paint and so on.



Technical characters:
1. Heating source steam, electricity. Far infrared, gas and electricity dual-use, for users to choose.
2. Service temperature: steam heating 50-130c, Max. 140
3. CSteam pressure 0.2-0.8mpa(2-8kg /cm2)
4. With electric heating calculated according to type 1 15kw, practical 5-8kw /h.
5. Use temperature is greater than 140C or less than 60C, should be noted when ordering.
6. Factory factory baked cars, baked disk size is uniform, can be exchanged.
Main Technical Parameter

Main technical parameters and related description:
1. A heating source of steam, far - infrared, electric steam dual-use, for users to choose.
2. Using temperature: steam heating 50-140 ° C, up to 150 C.
3. Electricity, far infrared temperature 50-500° C.
4. Equipped with automatic control system and computer control system for users to choose.
5. Common steam pressure: 0.02-0.8mpa (0.2-8kg/cm).
6. Electric heating, 15KW according to |, practical 5-8kw/h.
7. Special requirements shall be stated when ordering.
8. Non - standard oven price negotiable.
9. Please note when ordering if the operating temperature is greater than 140C or less than 60C.
10. Factory factory bake car, bake plate size is uniform, can be exchanged.
11. Baking tray size: 460x 640x45mm.





Schematic of installation​
