Continuous Industrial Inkjet Printer For Production Line Batch Code
LA-ECH-700

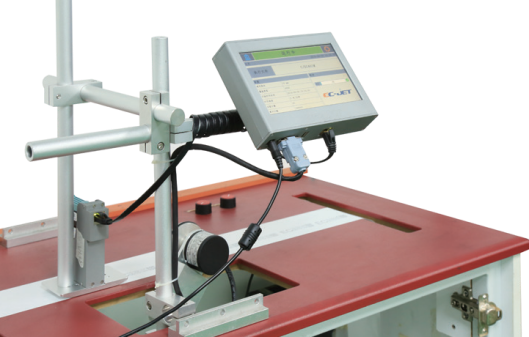

ECH700( A ) Continuous ink jet printer
Advantages:
Provide consumables, no need for regular maintenance,
maintenance-free, save maintenance costs for customers
Multiple models are optional, and the printing function is more
powerful.
Multi-nozzle seamless splicing
Installation is simple and easy to understand
FEATURE:
Spray printing speed can reach 160 meters per minute (150 DPI),
single nozzle maximum spray printing height support 12.7 mm*2
(3,4), experience high precision, high quality perfect spray
printing, comparable to printing effect.
Multi-Text Support System: It can edit Windows fonts, TrueType
fonts, pictures (BMP/PNG/JPEG formats), bar codes, two-dimensional
codes, etc.
- Multi-Text Support System: It can edit Windows fonts, TrueType
fonts, pictures (BMP/PNG/JPEG formats), bar codes, two-dimensional
codes, etc.
- Unconstrained information storage to facilitate customer
information access and storage
- Effective spray printing range of sprinkler head can edit required
content arbitrarily
| el | ECH700 | ECH700A |
| Printing Height | 1 nozzles, |
| Printing | Arbitrary editing within the effective spray printing range of the nozzle |
| dynamic data | -- | Telecommunication, Bar Code/ Two-Dimensional Code, Database Text, Variable Bar Code/Two-Dimensional Code |
| printing speed | 160m/min(150DPI) |
| Data support | Text, date, time, pipeline number, serial number, picture, static bar code/two-dimensional code |
| Support fonts | Windows font library, TrueType font, picture (BMP/ PNG/JPEG format), bar code, two-dimensional code |
| Information Length | 20inch, Extended customization for special cases |
| Storage of information | 2GBstorage space |
| operating system | |
| External interface | -- | Standard USB Host and Remote Communication Interface |
| physical characteristics | | |
| Use environment | temperature :10~40℃, relative humidity:10~80% |
| electromagnetic compatibility | EN55011:2009+A1:2010,EN61326-1:2013,EN61000-3-2:2014,EN61000-3-3:2013 |
| Consumables life | Up to 1.5 billion dots (42 ml cartridge), about 385,000 12.7 mm high characters |
| Spray Printing Material | Permeable or semi-permeable surface materials such as wood,
cardboard boxes, building materials, etc. |
| The power adapter | 110V-240VAC,50/60Hz |
| Power | |
APPLICATIONS:
