1. Application:

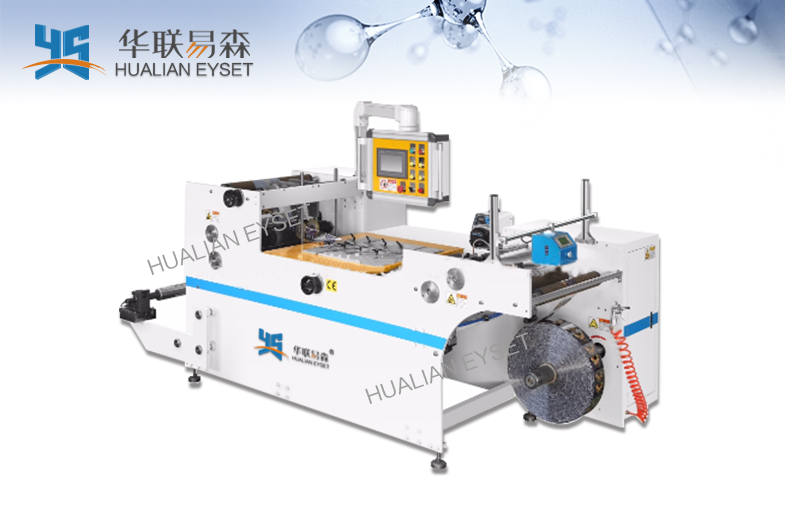

The machine is specialized in folding and gluing PVC ,PET ,PETG,OPS shrinkage film to shrink sleeve label roll . The label is widely used in packing beverage, food , batteries, cap , chemical industry, cosmetics, etc. The machine works more stably and efficiently because of excellent tension control system ,intelligent gluing system and reasonable design of mechanical structure . It is necessary equipment in shrink sleeve label production.

2. Main Technical Parameter:

3. Features:

1)Stable and heavy-duty frame for high speed operation of 400n/min.

2) Adjustable forming plate creates efficient operation.

3) Auto solvent feeding control.

4) Auto tension control for unwind/rewind unit to maintain the optimun tension.

5) Good brand EPC device, precision 0.1mm.

6) Accurate product width.

7) Cantilevered rewind/unwind shaft for fast roll changeover.

8) PLC with color touch screen control system.

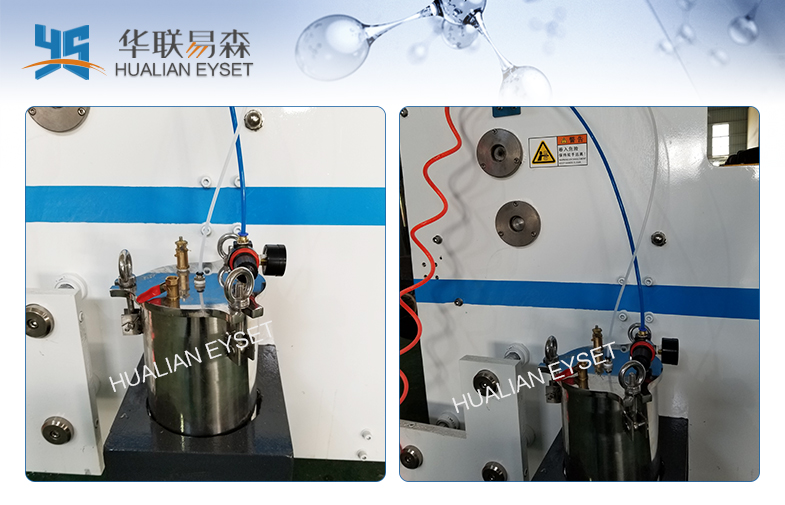

9) Copper tubing with felted wool for gluing, work with glue pump (dispenser) and PLC. The PLC can control the glue capacity with speed changes.

10) Rewind oscillation control to produce high quality rolls.

11) Static eliminator is adopted before rewinder.

12) Whole machine with 4 pcs of servo motors(2 for traction, 1 for rewinder, 1 for oscillation), and 1pc magnetic powder brake for unwinder.

13) Linear perforation.

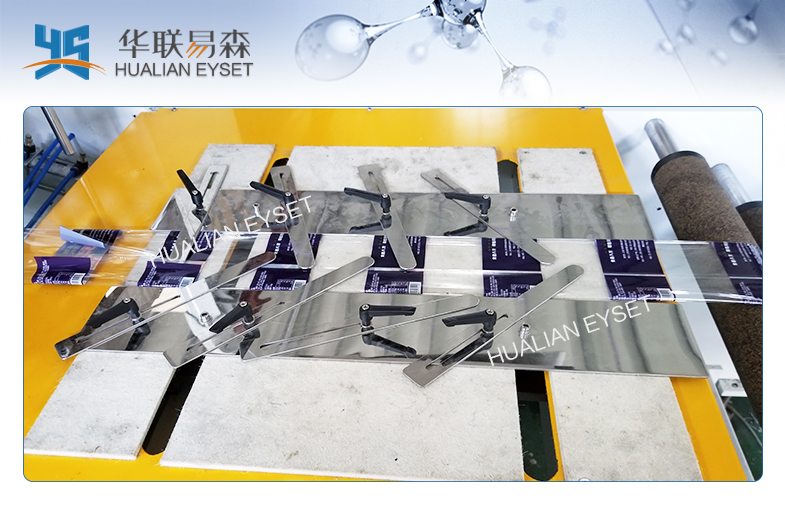

14) traditional aluminum plates forming device for sizes from 30-80mm.

15) auto stop when the rolls finish.

4. Optional devices:

• 6inch air shaft for rewinder
• Nordson Needle gluing system
• Sleeve Width checking system, BST brand(Max checking width 284mm)

.5. Main configuration:
